ASME Y14.5M-1994 to -2009 Update Coach - Corporate Web Access

SKU: 5300CWA
Price:
Price varies based on options.

Concurrent Licenses:
Qty: - +
   - OR -

This course is intended for those who already know GD&T in accordance with the ASME Y14.5M-1994 national standard. This is not for someone who is new to GD&T. This fast paced seminar will present the major revisions to this national standard which is recognized worldwide.

The major revisions of the Standard are driven by the needs of industry. A drawing today is defined in the Y14.100 Standard as "an engineering document or digital data file(s)." Designs and individual parts are more complex today. In addition, the need for higher quality and improved productivity demand that we get it right the first time. The applications of the new concepts will be shown on a variety of parts.

On average this course takes 8 to 10 hours to complete.

Corporate Web Access Includes:

1) Take Online

2) 1 Year Access (Additional year options available)

3) Online access of textbook, no hard copies

4) Surpervisor access to run reports and see who is training

5) Tracks multiple students

6) Includes final exam

7) Concurrent users based on number of seats purchased

Other options for this course includes Individual Web Access

Section 1 - Scope, Definitions, and General Dimensioning

  • Clarify Boundaries
  • The Coordinate System - New Symbol
  • Degrees of Freedom
  • Datum Feature Simulator Definition
  • Actual Envelopes
  • Irregular Features of Size - New Concept
  • Major Revisions to Fundamental Rules
  • Rounded Ends and Slotted Holes
  • Readability
  • Spotface - New Symbol

Section 2 - General Tolerancing

  • Positional Tolerancing Method
  • Basic Dimensions
  • Principle of Independency - New Symbol
  • Continuous Feature - New Symbol

Section 3 - Symbology

  • New Symbology Symbol Placement

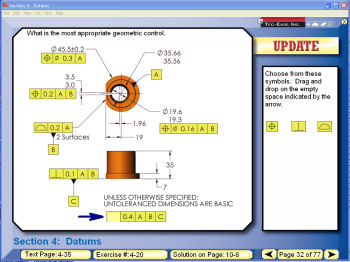

Section 4 - Datum Reference Frames

  • Labeling the Coordinate System - New Symbol
  • Degrees of Freedom - New Symbols
  • Datum Feature Simulators
  • Degrees of Freedom Chart - Expansion of Datum Features
  • Virtual Condition - Clarified
  • Orienting Datum Planes - Clarified
  • Regardless of Material Boundary Application
  • Maximum Material Boundary Application
  • Datum Translation - New Symbol
  • Irregular Features of Size as Datum Features
  • Datum Feature Selection
  • Customized Datum Reference Frame - New Symbol
  • Mathematically Defined Surface
  • Clarifying Applicable Boundaries
  • Movable Datum Targets - New Symbol
  • Restraint Clarified
  • Multiple Datum Features
  • Simultaneous Requirements

Section 5 - Tolerances of Form

  • Application of Flatness RFS, MMC or LMC - New Use of Flatness

Section 6 - Tolerances of Orientation

  • One Orientation Symbol Instead of Three!

Section 7 - Tolerances of Location

  • Position, Concentricity and Symmetry
  • Profile of a Surface Control
  • LMC and LMB Applications to Position
  • Composite Position Tolerancing - Expanded
  • Position Tolerance with No Datum Reference

Section 8 - Tolerances of Profile

  • Profile Tolerances for Plane Surfaces
  • Offset Surfaces
  • Combined Controls
  • Unilateral and Unequally Disposed Profile - New Symbol
  • Profile Tolerances as General Requirements
  • All Over Specification/Symbol - New Symbol
  • Non-Uniform Zone - New Control
  • Non-Uniform Zone to Smooth the Transitions
  • Composite Profile Tolerancing - Expanded

Section 9 - Tolerances of Runout

  • No changes
